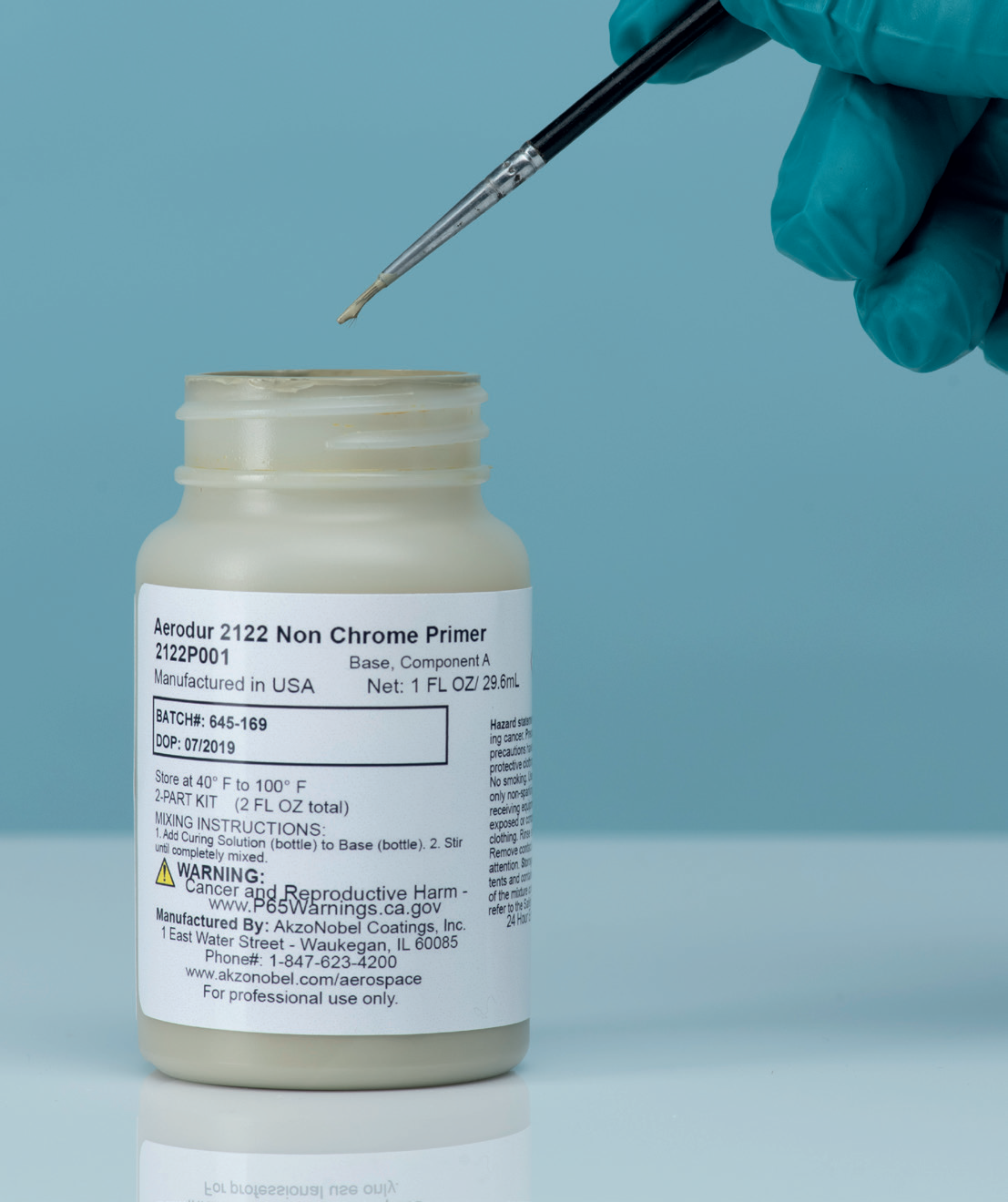

2122P001 is a fast drying, fluid resistant epoxy primer designed for compatibility with sealants, for touch-up of damaged primer coatings and for use as a tie coat in applications requiring corrosion resistance without the use of chromate pigments.
Unit of Measure

Product Group

N/A Epoxy Chrome Free Corrosion Inhibiting Touch-up Primer

Specifications

Brands

 N/A AkzoNobel

Qualified Product List

 N/A LMA-MR058 Class I, Form I (E) Lockheed Martin Aeronautics

Components

Curing Solution

 N/A EC-292

Surface Conditions

Cleaning

 N/A For application to previously applied primers:
  • Scotch-Brite® aged primer
  • Solvent wipe
  • Apply 2122P001
  • If previously applied primer is removed to bare metal, follow FMS-1058E specification requirements for cleaning and pretreatment application.

  • Surface Pretreatment is an essential part of the painting process
  • Follow specification requirements for pretreatment & primer application

Instructions for Use

Mixing Ratio (Volume)

 N/A 1 part 2122P001 Base Component
1 part EC-292 Curing Solution
  • Stir or Shake until all pigment is uniformly dispersed before adding curing solution.
  • Stir the catalyzed mixture thoroughly.

Induction Time

 N/A 15 minutes

Pot Life at 25 Degree Celsius (ºC) / 77 Degree Fahrenheit (ºF) Temperature

 N/A 1.5 to 2.0 hour

Dry Film Thickness (DFT)

 N/A 15.24 to 25.4 micron µm0.6 to 1.0 mil

Application Recommendations

Temperature Condition

 N/A 15 to 35 ºC59 to 95 ºF

Relative Humidity Condition

 N/A 35 to 75 %

Note

 N/A The quality of the application of all coatings will be influenced by the equipment chosen and the temperature, humidity, and air flow of the paint application area. When applying the product for the first time, it is recommended that test panels be prepared to identify the best settings to be used in optimizing the performance and appearance of the coating.

Equipment

 N/A Fine bristle brush or equivalent

Number of Coats

 N/A A single uniform wet coat to recommended dry film thickness.

Equipment Cleaning

 N/A MEK

Physical Properties

Dust Free Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A 15 minutes

Tack Free Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A 30 minutes

Dry to Topcoat Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A 2 hour

Dry through Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A 4 hour

Full Cure Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A 7 days

Note for Dry Time at 25 ± 2 Degree Celsius (ºC) / 77 ± 2 Degree Fahrenheit (ºF)

 N/A According to AITM 2-0011
55 ± 5% Relative Humidity (RH)

Theoretical Coverage

 N/A 8.75 m² per liter ready to apply at 25 µm dry film thickness
351 ft² per US gallon ready to apply at 1 mil dry film thickness

Dry Film Weight

 N/A 0.0100 lb/ft2/1 mil 48.25 g/m2/25 micron
Volatile Organic Compounds1 N/A 350 g/L

Maximum Volatile Organic Compounds

 N/A 2.9 lb/gal

Maximum Gloss at 60 Degree

 N/A 15 GU

Color

 N/A Green

Flash Point Temperature for 2122P001

 N/A -17 ºC1 ºF

Flash Point Temperature for EC-292

 N/A -17 ºC1 ºF

Storage

 N/A Store the product dry and at a temperature between 5 and 38ºC / 40 and 100ºF per AkzoNobel Aerospace Coatings specification. Store product upright. Store in the original unopened containers. Storage temperature may vary per OEM specification requirements. Refer to container label for specific storage life information.

Shelf Life at 5 to 38 Degree Celsius (ºC)/40 to 100 Degree Fahrenheit (ºF) Temperature

 N/A 7 months per AkzoNobel Aerospace Coatings commercial specification. Shelf life may vary due to OEM specification requirements. Refer to container label for specific shelf life information.
Shelf life of 12 months can be achieved with storage conditions at 77°F and 50% humidity.

Safety Precautions

N/A Comply with all local safety, disposal and transportation regulations. Check the Material Safety Data Sheet (MSDS) and label of the individual products carefully before using the products. The MSDSs are available on request.

  • 1 As per US calculations.
